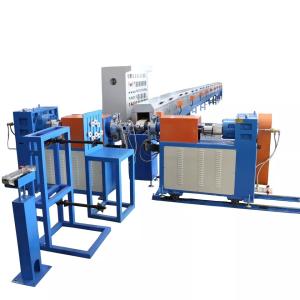

Silicone LED Strip Extrusion Line Single Screw

Brand Name : Wirecan

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.50working days

Packaging Details : Plastic film+wooden box

Machine type : Single Screw Extrusion Line

Plastic Processed : PE, PP, PVC, PC

Screw L/D Ratio : 12:1

Voltage : 380v, 380V,50HZ,3Phase/customized

Warranty of core components : 1 Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops

Contact Now

Silicone LED Strip Extrusion Line

i-suntop Electric wire and cable equipments2022022...

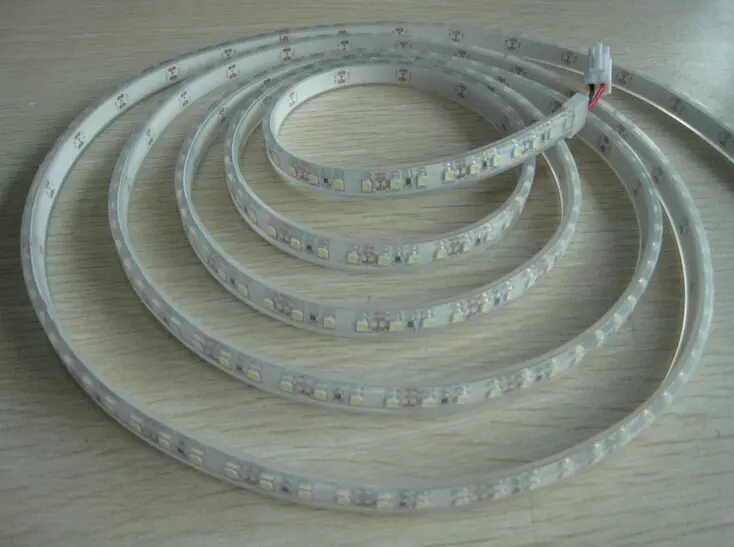

1. Application for Silicone LED Strip Extrusion Line :

It is suitable for extruding High quality Silicone LED Strip Extrusion Line

2. Specification for Silicone LED Strip Extrusion Line :

WRK65

WRK80

WRK90

Finished diameter

1.5-30mm

2.0-40mm

3.0-60mm

Line speed (max.)

10m/min

10m/min

10m/min

Extrusion output (max.)

70kg/h

100kg/h

150kg/h

L/D

12:01

12:01

12:01

Extruder power

11KW

22kw

37KW

Horizontal curing length

20m

20m

24m

Capstan power

1.5KW

1.5KW

1.5KW

3.FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production
It takes more than 30 business days to customize complex mechanical equipment.
Q2:What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3:How do you gurantee the machine stable operating?
A3:we do Pre-shipment test for every single piece of machine.
we have seperate QC,delivery,sales and after-sales departments.
also strict management process from pre-sales to after-sales.
Q4: How is your After-Sales Service?
A4:1 year warranty with 60+ oversea after-service engineers
(oversea after-service team of high efficient,professional and enough experience
for various Non-standard project)
Q5:How can I install my machine when it arrives?
A5: For simple and semi auto machine,We would send manual instruction and teaching video.For complex operation , we will send the engineers overseas to help client installing, operating and training.
